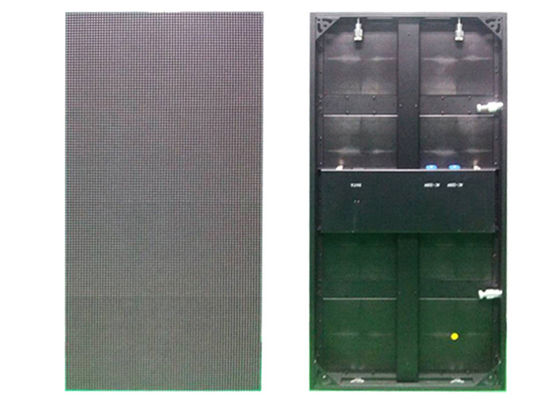

Indoor SMD P6.944 Events LED Display Curtain / Soft LED Display

I'm Online Chat Now
Certification
China Shenzhen Eachin Technology Co.,Ltd. certification
China Shenzhen Eachin Technology Co.,Ltd. certification
Their products(Pantallas LED) and service are excellent. I spent wonderful time during visit in China. We are not only partners but also good friends.

—— Roberto Mathieu

The LED Display Screens and LED Monitors of Eacintech are of High Quality. They are very professional. We will keep long-term friendly partnership.

—— Domenico Perri

Indoor SMD P6.944 Events LED Display Curtain / Soft LED Display

large.img.alt
small.img.alt

Large Image :  Indoor SMD P6.944 Events LED Display Curtain / Soft LED Display Get Best Price

Product Details:
Place of Origin: Shenzhen
Brand Name: Eachin
Certification: CE, RoHs, ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Packaging Details: Plywood or Flight case
Delivery Time: 10-15 days
Payment Terms: T/T,L/C
Supply Ability: 5000sqm/month
Detailed Product Description
High Light:

advertising led screen

,

led video screens



Indoor SMD P6.944 Automated Display / led curtain / soft led display



[Specifications]

High Brightness
High Resolution
High Density Electronic Full Color Display
Low Power Consumption
Wide Viewing Angle





Rental LED Display Screen Characteristic

1.Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.

2.Thin cabinet: the thickness is only 6.5 CM, the space of the screen is small , and the entire screen will be more beautiful.

3.Flat screen: smooth surface error is under 0.2cm, it can remove the mosaic phenomenon .effectively. The effect of the display will be more clear and exquisite.

4. Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful.

5. Low release heat: low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.



Technical Specification:

Aluminum Rental LED Display Screen
Module Pitch/mm P6.944 (Indoor) P5.2 (Indoor) P8.925(Outdoor)
Cabinet size/mm 500x1000 500x1000 500x1000
Density of pixel/(dots/m2) 20,736 36,864 12,544
Led encapsulation SMD3528 SMD3528 SMD3535
Resolution of module 72x144 96x192 56x112
Main Optimum viewing distance ≥7 ≥5 ≥8
View angle / ° 140 H,120 V 140 H,120 V 140 H,120 V
Average power consumption/W/m2 150 120 400
Max power consumption/W/m2 300 200 800
Driving method 1/9 scan constant current 1/8 scan constant current 1/4 scan constant current
Refresh rate Hz/S ≥2500 ≥2500 ≥2500
Luminance of white balance ≥1500cd/m2 ≥150cd/m2 ≥5500cd/m2
Operation of Environmental Temperature/°C below 30 to above 50
Working voltage 110-220 VAC/+/- 10%
Grey scale/color displaying colors≥16.7M(synchronized)
Brightness adjustment 256 levels of each color(manually),8 levels of each color(automatically)
Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system linsn(sending card,receiving cards and Hubs)
Average of non-failure life >5,000h
Life span >100,000h
Functionless dot rate <0.0001



Indoor SMD P6.944 Events LED Display Curtain / Soft LED Display 0

Indoor SMD P6.944 Events LED Display Curtain / Soft LED Display 1Indoor SMD P6.944 Events LED Display Curtain / Soft LED Display 2
Indoor SMD P6.944 Events LED Display Curtain / Soft LED Display 3
Indoor SMD P6.944 Events LED Display Curtain / Soft LED Display 4
Indoor SMD P6.944 Events LED Display Curtain / Soft LED Display 5Indoor SMD P6.944 Events LED Display Curtain / Soft LED Display 6
