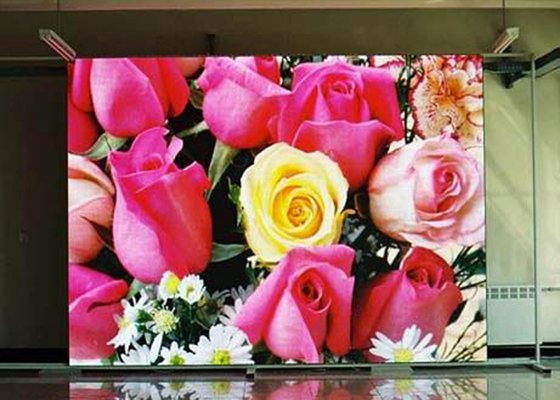

Energy Saving SMD 3 in 1 Full Color Indoor LED Screen Display

I'm Online Chat Now
Certification
China Shenzhen Eachin Technology Co.,Ltd. certification
China Shenzhen Eachin Technology Co.,Ltd. certification
Their products(Pantallas LED) and service are excellent. I spent wonderful time during visit in China. We are not only partners but also good friends.

—— Roberto Mathieu

The LED Display Screens and LED Monitors of Eacintech are of High Quality. They are very professional. We will keep long-term friendly partnership.

—— Domenico Perri

Energy Saving SMD 3 in 1 Full Color Indoor LED Screen Display

large.img.alt
small.img.alt

Large Image :  Energy Saving SMD 3 in 1 Full Color Indoor LED Screen Display Get Best Price

Product Details:
Place of Origin: Shenzhen
Brand Name: Eachin
Certification: CE, RoHs, ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Packaging Details: Plywood or Flight case
Delivery Time: 10-15 days
Payment Terms: T/T
Supply Ability: 5000sqm/month
Detailed Product Description
High Light:

led video wall rental

,

led video wall display

Energy Saving SMD 3 in 1 Full Color Indoor LED Screen Display with 1000 W / m2



Applications:



This kind of LED Display Screen is applied for advertising, city beautifying, information publicity, and relative activities.

Application Areas :

·---Indoor advertising, digital billboards, advertising for big companies

·---Sports halls, fields, playgrounds.

·---Airports, bus stations and railway passenger terminals.

·---Department stores, banks and car dealerships.

·---Architecture and social projects, information systems in cities.

·---Show-business, concerts, festivals, and other public events.



Specifications:



Indoor SMD 3 in 1 full color LED Display Screen

Module

Pitch/mm

p5

p6

p7.62

p8

Module size/mm

160x160

192x192

244x122

256x128

Density of pixel/(dots/m2)

40, 000

27, 777

17, 222

15, 625

Pixel composition

1R1G1B

1R1G1B

1R1G1B

1R1G1B

Led encapsulation

SMD3528

SMD3528

SMD3528

SMD3528

Resolution of module

32X32

32X32

32X16

32X16

Main

Optimum viewing distance

6-16m

7.5-20m

9-25m

10-26m

View angle / °

160 H, 120 V

160 H, 120 V

160 H, 120 V

160 H, 120 V

Max power consumption/W/M2

1, 700

1, 400

1, 000

1, 000

Size of cabinet/mm

640X480

768X576

976X732

1024x768

Resolution of cabinet

128X96

128x96

128X96

128X96

Weight of cabinet/kg

21

30

32

35

Driving method

1/8 scan constant current

1/8 scan constant current

1/8 scan constant current

1/8 scan constant current

Frame frequency / Hz/S

≥360

≥360

≥360

≥360

Refresh rate Hz/S

≥600

≥600

≥600

≥600

Luminance of white balance

≥2500 nits

≥2000 nits

≥1500 nits

≥1200 nits

Operation of Environmental Temperature/℃

below 30  to  above 50

Working vlotage

110-220 VAC/+/- 10%

Grey scale/color

displaying colors≥16.7M(synchronized)

Brightness adjustment

256 levels of each color(manually), 100 levels of each color(automatically)

Input signal

RF, S-Video, RGB, RGBH, YUV, YC&Composition , etc

Control system

linsn(sending card, receiving cards and Hubs)

Average of non-failure life

>50, 00h

Life span

>100, 000h

Functionaless dot rate

<0.0001



Competitive Advantage:



1. Quality stability and reliability;

2. High refresh rate and low power consumption;

3. Complete project solution provider

4. Two years warranty
