P16mm Outdoor Electronic LED Video Display Screens for Advertisement
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | mesh led screen,outdoor led display screen |
||
|---|---|---|---|

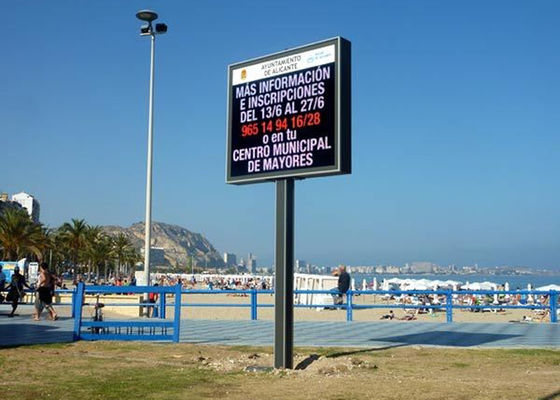

P16mm Outdoor Electronic LED Video Display Screens for Advertisement
The modular structure for the led display screens can make any size.
and we have different solutions with various cabinet size to meet your requirements.
Applications:
This kind of Video Displays are applied for advertising, city beautifying, information publicity, and relative activities.
Application Areas :
·---Outdoor advertising video displays, led video wall, advertising for big companies
·---Sports halls, fields, playgrounds.
·---Airports, bus stations and railway passenger terminals.
·---Facades of shopping malls, department stores, banks and car dealerships.
·---Architecture and social projects, information systems in cities.
·---Highway, road, streets or other public led video display projects.
Specifications:
|
Outdoor full color Video Display |
|||||
|
Module |
Pitch/mm |
p10 |
p12 |
p16 |
p20 |
|
Module size/mm |
160x160 |
192x192 |
256x128 |
320x160 |
|
|
Density of pixel/(dots/m2) |
10, 000 |
6, 944 |
3, 906 |
2, 500 |
|
|
Pixel composition |
1R1G1B |
2R1G1B |
2R1G1B |
2R1G1B |
|
|
Led encapsulation |
DIP |
DIP |
DIP |
DIP |
|
|
Resolution of module |
16X16 |
16X16 |
32X16 |
32X16 |
|
|
Main |
Optimum viewing distance |
≥10 |
≥12 |
≥15 |
≥17 |
|
View angle / ° |
110 H, 60 V |
110 H, 60 V |
110 H, 60 V |
110 H, 60 V |
|
|
Average power consumption/W/M2 |
450 |
450 |
400 |
350 |
|
|
Max power consumption/W/M2 |
950 |
950 |
900 |
850 |
|
|
Size of cabinet/mm |
960X960 |
960X960 |
1024X768 |
1280X960 |
|
|
Resolution of cabinet |
96X96 |
80x80 |
64x48 |
64X48 |
|
|
Weight of cabinet/kg |
65 |
65 |
60 |
75 |
|
|
Driving method |
1/4 scan constant current |
1/4 scan constant current |
Static constant current |
Static constant current |
|
|
Frame frequency / Hz/S |
≥60 |
≥60 |
≥60 |
≥60 |
|
|
Refresh rate Hz/S |
≥600 |
≥600 |
≥600 |
≥600 |
|
|
Luminance of white balance |
≥7000 nits |
≥7000 nits |
≥6500 nits |
≥6000 nits |
|
|
Operation of Environmental Temperature/℃ |
below 30 to above 50 |
||||
|
IP rating |
Front, IP65;Rear, IP43 |
||||
|
Working vlotage |
110-220 VAC/+/- 10% |
||||
|
Grey scale/color |
displaying colors≥16.7M(synchronized) |
||||
|
Brightness adjustment |
256 levels of each color(manually), 100 levels of each color(automatically) |
||||
|
Input signal |
RF, S-Video, RGB, RGBH, YUV, YC&Composition , etc |
||||
|
Control system |
linsn(sending card, receiving cards and Hubs) |
||||
|
Average of non-failure life |
>50, 00h |
||||
|
Life span |
>100, 000h |
||||
|
Functionaless dot rate |
<0.0001 |
||||
Competitive Advantage:
1. Quality stability and reliability;
2. High refresh rate and low power consumption;
3. Complete project solution provider
4. Two years warranty
