Product Details:
Payment & Shipping Terms:
|
LED Type: | RGB 3in1 SMD2121 | Pixel Pitch: | 3.9mm |
---|---|---|---|
Pixel Density(dot/s.q.m): | 65536 | SMD Type: | SMD2121 Black LEDs |
Weight Of Each Panel/Cabinet: | 8kg | View Angle: | 140H 120V |
LED Type: | RGB 3in1 SMD2121 | Pixel Density(dot/s.q.m): | 65536 |
SMD Type: | SMD2121 Black LEDs | View Angle: | 140H 120V |
High Light: | led concert screens,concert video screens |

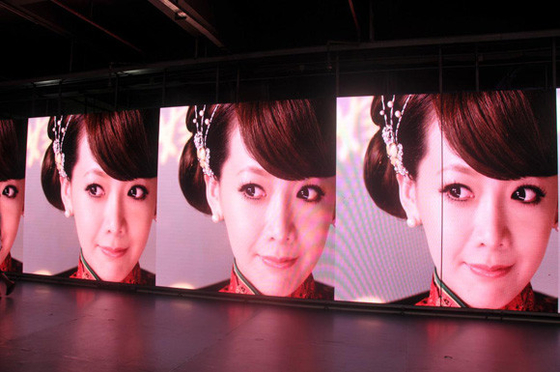

3.9mm Pixel Pitch Black Face indoor LED Display High definition For Rental
[Product Description]
Indoor High Precision Aluminum Series for Rental:
1. P3.9/4.8/5.2mm modules are 250x250mm, compatible to the same cabinet.
2.Fast assemble with fast lock and self-help positioning ball.
3. Extruded Aluminum or Die-casting aluminum cabinet, high strength, no deformation.
4. High precision workmanship, seamless splice<0.1mm.
5. High definition visual effect as TV, good for any indoor rental application.
6. No fans no flat cable design, no noise, easy to disassembly.
7. Snap joint mask design, more easier to insallation, less maintenaince cost.
8. Adopt high quality SMD2121 or SMD3528 LED as light source.
9. Assure consitent color temperature and brightness.
[Technical Specification]
Pixel Pitch |
3.9mm |
4.8mm |
5.2mm |
|
LED type |
RGB 3in1 SMD2121 |
RGB 3in1 SMD2121 SMD3528 |
|
|
Pixel Density(dot/s.q.m) |
65536 |
43402 |
36884 |
|
Resolution(WxH) |
128*128dot |
104*104 dot |
192*96dot |
|
Cabinet size |
500x500x70mm |
|
||
Weight |
8kg |
8kg |
8kg |
|
Waterproof rate |
IP43 |
|
||
Brightness |
1200nits |
1200nits |
2000nits |
|
View Distance |
4m |
5m |
5m |
|
Viewing Angle (H/V) |
140°/120° |
|||
Gray Scale |
14bit |
|||
Color type |
68 Billion |
|||
Max.Power Consumption |
250W/PCS |
120W/PCS |
120W/PCS |
|
Ave .Power Consumption |
130W/PCS |
60W/PCS |
60W/PCS |
|
Refresh rate |
1960Hz |
|||
Gamma |
-5.0~+5.0 |
|||
Applied environment |
INDOOR |
|
||
Controller |
Synchronous display with control PC by DVI |
|||
Support Input |
Composite ,S-Vide ,Component ,VGA,DVI,HDMI,HD_SDI |
|||
Power input |
AC 110-220V±10% |
|||
Environment |
temperature -10°C~+50°C,humidity 10~90% RH |
|||
Operating Life |
50,000hours |
[FAQ]
Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1: Indoor (3.9mm / 4.8 mm/ 5.2mm)
Q2: Where is it used for?
A2: Indoor & rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar controlling system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
