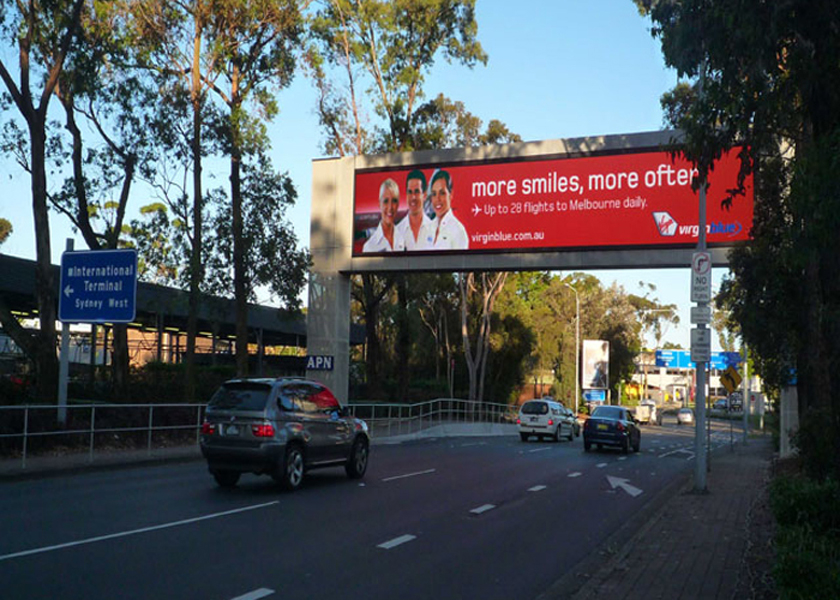

Giant Outdoor Electronic Led Signs Display Road Signs
Applications:
This kind of Giant LED Display is applied for advertising, city beautifying, information publicity, and relative activities.
Application Areas :
·---Outdoor advertising, digital led billboards, advertising for big companies
·---Sports halls, fields, playgrounds.
·---Airports, bus stations and railway passenger terminals led panels.
·---Facades of shopping malls, department stores, banks and car dealerships.
·---Architecture and social projects, information systems in cities.
·---Highway, road, streets or other public advertising giant led display projects.
Specifications:
Outdoor full color Giant LED Display |
|||||
Module |
Pitch/mm |
p16 |
p16V |
p20 |
p20V |
Module size/mm |
256x128 |
256x128 |
320x160 |
320x160 |
|
Density of pixel/(dots/m2) |
3, 906 |
3, 906 |
2, 500 |
2, 500 |
|
Pixel composition |
2R1G1B |
2R1G1B |
2R1G1B |
2R1G1B |
|
Led encapsulation |
DIP |
DIP |
DIP |
DIP |
|
Resolution of module |
32X16 |
32X16 |
32X16 |
32X16 |
|
Main |
Optimum viewing distance |
≥15 |
≥15 |
≥17 |
≥17 |
View angle / ° |
110 H, 60 V |
110 H, 60 V |
110 H, 60 V |
110 H, 60 V |
|
Average power consumption/W/M2 |
400 |
450 |
350 |
400 |
|
Max power consumption/W/M2 |
900 |
950 |
850 |
900 |
|
Size of cabinet/mm |
1024X768 |
1024X768 |
1280X960 |
1280X960 |
|
Resolution of cabinet |
64x48 |
64x48 |
64X48 |
64X48 |
|
Weight of cabinet/kg |
60 |
60 |
75 |
75 |
|
Driving method |
Static constant current |
Static constant current |
Static constant current |
Static constant current |
|
Frame frequency / Hz/S |
≥60 |
≥60 |
≥60 |
≥60 |
|
Refresh rate Hz/S |
≥600 |
≥600 |
≥600 |
≥600 |
|
Luminance of white balance |
≥6500 nits |
≥7000 nits |
≥6000 nits |
≥6500 nits |
|
Operation of Environmental Temperature/℃ |
below 30 to above 50 |
||||
IP rating |
Front, IP65;Rear, IP43 |
||||
Working vlotage |
110-220 VAC/+/- 10% |
||||
Grey scale/color |
displaying colors≥16.7M(synchronized) |
||||
Brightness adjustment |
256 levels of each color(manually), 100 levels of each color(automatically) |
||||
Input signal |
RF, S-Video, RGB, RGBH, YUV, YC&Composition , etc |
||||
Control system |
linsn(sending card, receiving cards and Hubs) |
||||
Average of non-failure life |
>50, 00h |
||||
Life span |
>100, 000h |
||||
Functionaless dot rate |
<0.0001 |
Competitive Advantage:
1. Quality stability and reliability;
2. High refresh rate and low power consumption;
3. Complete project solution provider
4. Two years warranty
