P10 1R1G1B DIP Outdoor Full Color Video Display With Multi-functional Card Large LED Screens
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | mesh led screen,outdoor led display screen |
||
|---|---|---|---|

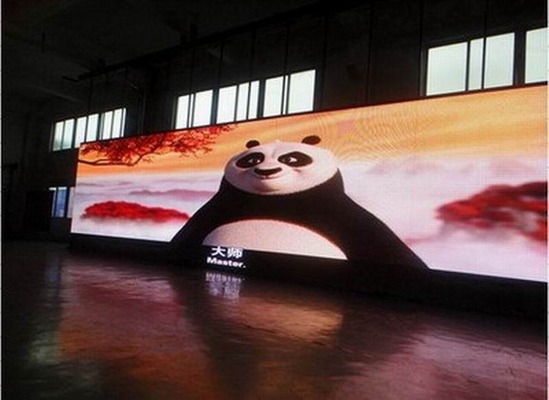

P10 1R1G1B DIP Outdoor Full Color Video Display With Multi-functional Card Large LED Screens
Outdoor Full Color Large LED Video Display Screens
The led commercial advertising display screens are highlighted on most existing advertising media due to its impressive vision and movements that manage to attract public attention passer.
For some time these outdor full color advertising LED billboards are being imposed as an advertising medium first order, and which emit a large amount of information in a very small space. Thus the LED display boards attract the attention they get from passers-by and traffic, thus achieving a high level of advertising effectiveness.
A major advantage is energy saving of LED diodes. LED Display Panels have a long life and a very small power consumption and allow LED billboards can be seenin fullsunlight.
Advantages:
- with multi-functional card, it can turn on and turn off the screen by software timing or manually at any time.
- with sensor card, it can adjust screen brightness automatically according to the changing light between day and night which can save energy to reduce your operating cost greatly. In addition, it can prolong the lifespan of the LED Display.
- High refresh rate and high gray make the picture vivid which meets the demand of high visual quality of commercial usage.
Technical Specifications:
|
Outdoor Full color LED Display Screen |
|||||
|
Module |
Pitch/mm |
p10 |
p12 |
p16 |
p20 |
|
Module size/mm |
160x160 |
192x192 |
256x128 |
320x160 |
|
|
Density of pixel/(dots/m2) |
10,000 |
6,944 |
3,906 |
2,500 |
|
|
Pixel composition |
1R1G1B |
2R1G1B |
2R1G1B |
2R1G1B |
|
|
Led encapsulation |
DIP |
DIP |
DIP |
DIP |
|
|
Resolution of module |
16X16 |
16X16 |
32X16 |
32X16 |
|
|
Main |
Optimum viewing distance |
≥10 |
≥12 |
≥15 |
≥17 |
|
View angle / ° |
110 H,60 V |
110 H,60 V |
110 H,60 V |
110 H,60 V |
|
|
Average power consumption/W/M2 |
500 |
450 |
400 |
350 |
|
|
Max power consumption/W/M2 |
1000 |
900 |
850 |
700 |
|
|
Size of cabinet/mm |
960X960 |
1152X768 |
1024X768 |
1280X960 |
|
|
Resolution of cabinet |
96X96 |
96x64 |
64x48 |
64X48 |
|
|
Weight of cabinet/kg |
60 |
56 |
55 |
65 |
|
|
Driving method |
1/4 scan constant current |
1/2 scan constant current |
Static constant current |
Static constant current |
|
|
Frame frequency / Hz/S |
≥60 |
≥60 |
≥60 |
≥60 |
|
|
Refresh rate Hz/S |
≥600 |
≥600 |
≥600 |
≥600 |
|
|
Luminance of white balance |
≥7000 nits |
≥7000 nits |
≥6500 nits |
≥6000 nits |
|
|
Operation of Environmental Temperature/°C |
below 30 to above 50 |
||||
|
IP rating |
Front,IP65;Rear,IP43 |
||||
|
Working vlotage |
110-220 VAC/+/- 10% |
||||
|
Grey scale/color |
displaying colors≥16.7M(synchronized) |
||||
|
Brightness adjustment |
256 levels of each color(manually),100 levels of each color(automatically) |
||||
|
Input signal |
RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc |
||||
|
Control system |
linsn(sending card,receiving cards and Hubs) |
||||
|
Average of non-failure life |
>50,00h |
||||
|
Life span |
>100,000h |
||||
|
Functionaless dot rate |
<0.0001 |
||||
Competitive Advantage:
1. Quality stability and reliability;
2. High refresh rate and low power consumption;
3. Complete project solution provider
4. Two years warranty
