High Light: | led video wall rental,led video wall display |
---|

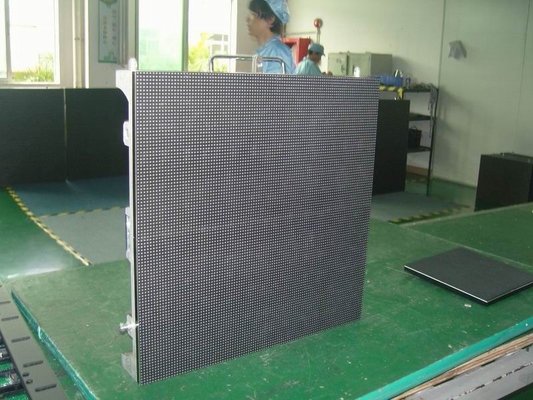

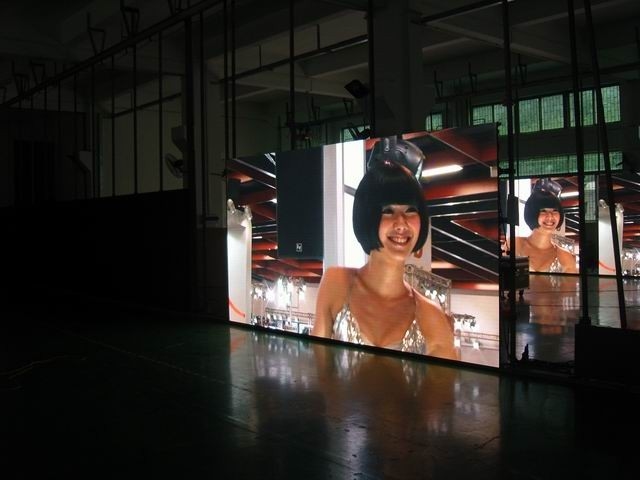

This kind of SMD 3 in 1 full color led display, super slim with Die-casting Aluminum,
is light and small, easy for transport and installation, perfect for events, concerts and shows.
Promiment Advantages:

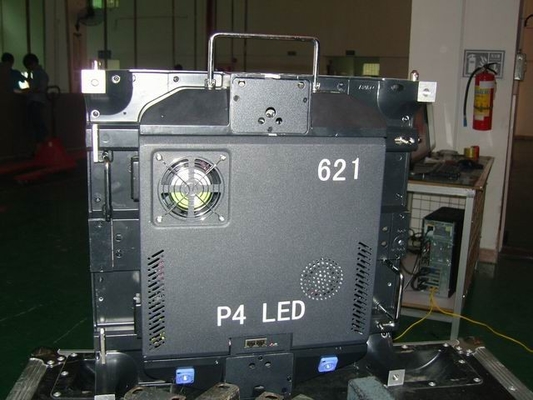

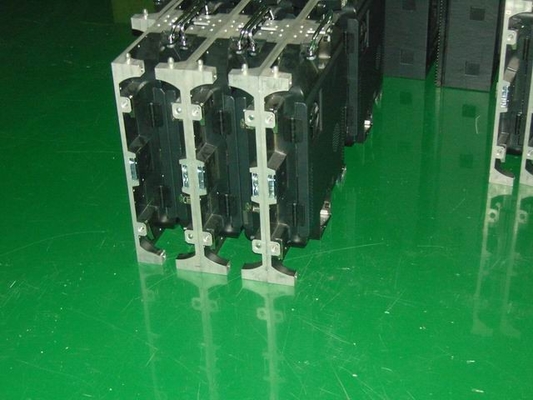

1.Special design,with die casting aluminum,quite slim cabinet,
per cabinet of 480mmx480mm,about 8kgs;

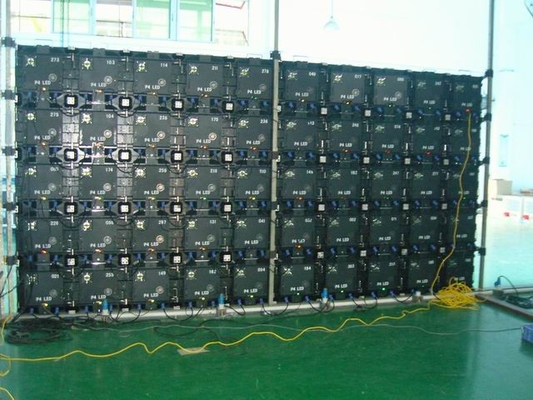

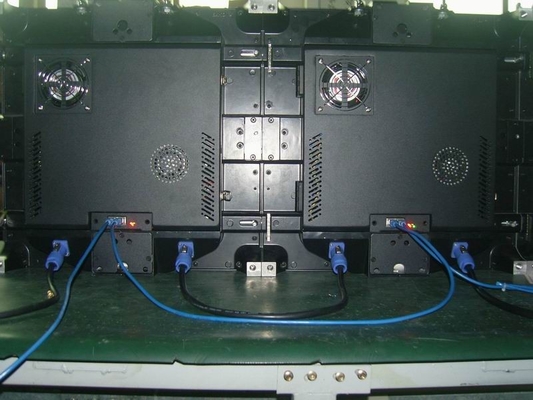

2.between cabinets,we adopt connection rental of 3 ways,
that is,with fast locks; Iron bolt; 2 and 4 holes connection plates.
3.no need to open cabinets,as there are alarming leds to show whether
power and signal work well for led cabinets.
Technical Parameters:
Module |
Pitch/mm |
P4 |
P4.8 |
P5 |
p6 |
Module size/mm |
240x240 |
240x240 |
240x240 |
240x240 |
|
Density of pixel/(dots/m2) |
62500 |
43402 |
40000 |
27,777 |
|
Pixel composition |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
|
Led encapsulation |
SMD 0606 |
SMD 3528 |
SMD 3528 |
SMD 3528 |
|
Resolution of module |
60X60 |
50X50 |
48X48 |
40X40 |
|
Main |
Optimum viewing distance |
3-15m |
4-16m |
4-18m |
5-20m |
View angle / ° |
140 H, 120 V |
140 H, 120 V |
140 H, 120 V |
140 H, 120 V |
|
Max power consumption/W/M2 |
2,000 |
1,700 |
1,600 |
1,300 |
|
Size of cabinet/mm |
480X480 |
480X480 |
480X480 |
480X480 |
|
Resolution of cabinet |
120x120 |
100x100 |
96x96 |
80x80 |
|
Weight of cabinet/kg |
8 |
8 |
8 |
8 |
|
Driving method |
1/16 scan constant current |
1/8 scan constant current |
1/8 scan constant current |
1/8 scan constant current |
|
Frame frequency / Hz/S |
≥360 |
≥360 |
≥360 |
≥360 |
|
Refresh rate Hz/S |
≥600 |
≥600 |
≥600 |
≥600 |
|
Luminance of white balance |
≥2500 nits |
≥2500 nits |
≥2500 nits |
≥2000 nits |
|
Operation of Environmental Temperature/℃ |
below 30 to above 50 |
||||
Working vlotage |
110-220 VAC/+/- 10% |
||||
Grey scale/color |
displaying colors≥16.7M(synchronized) |
||||
Brightness adjustment |
256 levels of each color(manually),100 levels of each color(automatically) |
||||
Input signal |
RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc |
||||
Control system |
linsn(sending card,receiving cards and Hubs) |
||||
Average of non-failure life |
>50,00h |
||||
Life span |
>100,000h |
||||
Functionaless dot rate |
<0.0001 |
· ----Our super slim led displays have the ISO9001:2000 Quality System Certification;
· ----CE Certification of our led display screen;
· ----RoHs Certificates;
· ----Excellent, Technical Innovation;
· ---- Price performance ratio;
· ----Contract Performance and Credibility;
· ----LED Displays with high brightness LED´s;
· ---- Modular LED display screens;
· ----Our LED Display Screens have two years warranty;
· ----Post sale assistance (after sale);
· ---- High expertise and know-how about LED display products;
· ----Personalized sale and less than 24 hours response on all inquiries
