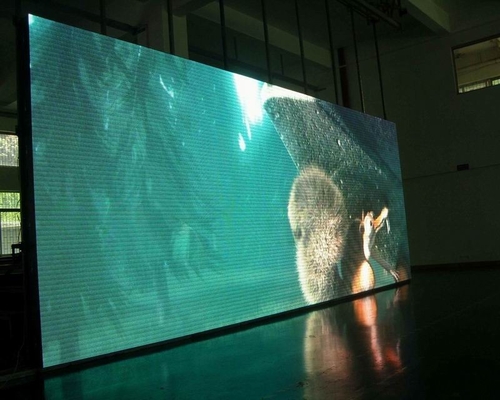

P10mm Alquiler de Pantallas LED Larege LED Screens de Chile
Pantallas electronicas led are widely used for Events. They can bring excellent audiovisual experience for Audience, no matter where are they located within the space.
Our Hanging Beam and Fast Locks help to make the assemble and diassemble very easy.
And the modular structure can tailor any size, easy for maintenance and replacement.
The Alquiler de Pantallas led para exteriores are very popular in Chile, and have won good reputation among our customers.
Technical Specifications:
Outdoor Full color LED Display Screen |
|||||
Module |
Pitch/mm |
p10 |
p12 |
p16 |
p20 |
Module size/mm |
160x160 |
192x192 |
256x128 |
320x160 |
|
Density of pixel/(dots/m2) |
10,000 |
6,944 |
3,906 |
2,500 |
|
Pixel composition |
1R1G1B |
2R1G1B |
2R1G1B |
2R1G1B |
|
Led encapsulation |
DIP |
DIP |
DIP |
DIP |
|
Resolution of module |
16X16 |
16X16 |
32X16 |
32X16 |
|
Main |
Optimum viewing distance |
≥10 |
≥12 |
≥15 |
≥17 |
View angle / ° |
110 H,60 V |
110 H,60 V |
110 H,60 V |
110 H,60 V |
|
Average power consumption/W/M2 |
500 |
450 |
400 |
350 |
|
Max power consumption/W/M2 |
1000 |
900 |
850 |
700 |
|
Size of cabinet/mm |
960X960 |
1152X768 |
1024X768 |
1280X960 |
|
Resolution of cabinet |
96X96 |
96x64 |
64x48 |
64X48 |
|
Weight of cabinet/kg |
60 |
56 |
55 |
65 |
|
Driving method |
1/4 scan constant current |
1/2 scan constant current |
Static constant current |
Static constant current |
|
Frame frequency / Hz/S |
≥60 |
≥60 |
≥60 |
≥60 |
|
Refresh rate Hz/S |
≥600 |
≥600 |
≥600 |
≥600 |
|
Luminance of white balance |
≥7000 nits |
≥7000 nits |
≥6500 nits |
≥6000 nits |
|
Operation of Environmental Temperature/°C |
below 30 to above 50 |
||||
IP rating |
Front,IP65;Rear,IP43 |
||||
Working vlotage |
110-220 VAC/+/- 10% |
||||
Grey scale/color |
displaying colors≥16.7M(synchronized) |
||||
Brightness adjustment |
256 levels of each color(manually),100 levels of each color(automatically) |
||||
Input signal |
RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc |
||||
Control system |
linsn(sending card,receiving cards and Hubs) |
||||
Average of non-failure life |
>50,00h |
||||
Life span |
>100,000h |
||||
Functionaless dot rate |
<0.0001 |
Competitive Advantage:
1. Quality stability and reliability;
2. High refresh rate and low power consumption;
3. Complete project solution provider
4. Two years warranty
