SMD2121 / SMD3528 Stadium LED Screen Indoor with High Definition

large.img.alt
small.img.alt

Large Image :  SMD2121 / SMD3528 Stadium LED Screen Indoor with High Definition Get Best Price

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Eachinled
Certification: CE ROSH,CCC
Model Number: P3.9/P4.8
Payment & Shipping Terms:
Minimum Order Quantity: 6 Square Meters
Price: USD 0-2250 Per Square Meter
Packaging Details: Flight Case/Road Case Size:1.05x0.59x0.55m
Delivery Time: 7-20 Days
Payment Terms: L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability: 5000 Square Meter Per Month
Detailed Product Description
Applied Environment: INDOOR Refresh Rate: 1960Hz
Brightness: 1500nit Per Square Meters Gamma: -5.0~+5.0
Weight Of Each Panel/Cabinet: 8kg View Angle: 140H 120V
High Light:

sports LED Screen

,

football led display

SMD2121 / SMD3528 Stadium LED Screen Indoor with High Definition







[Product Description]



Brightness - Up to 1500cd/nits/m² high brightness with excellent color uniformity, ideal for indoor stages
Hot swap - Innovative king pin and FastLock enables the flexibility of exchanging a panel from a complete screen
Dot by Dot - Latest dot correction technology allows curtain series panels to achieve full color uniformity and brightness
Fast - No tool assembly with fastlocks and compression locks for seamless assembly and performance
Efficient - Low power consumption
Full-HD Processing with DVI, VGA, HD-SDI inputs
Aluminium profile panel structure, strong, compact and seamless joint
Lightweight (12kg/panel) and ultra thin(70mm), for fast set-up and tear-down



[Technical Specification]

Pixel Pitch

3.9mm

4.8mm

5.2mm



LED type

RGB 3in1 SMD2121

RGB 3in1 SMD2121          SMD3528



Pixel Density(dot/s.q.m)

65536

43402

36884



Resolution(WxH)

128*128dot

104*104 dot

192*96dot



Cabinet size

500x500x70mm



Weight

8kg

8kg

8kg



Waterproof rate

IP43



Brightness

1200nits

1200nits

2000nits



View Distance

4m

5m

5m



Viewing Angle (H/V)

140°/12

Gray Scale

14bit

Color type

68 Billion

Max.Power Consumption

250W/PCS

120W/PCS

120W/PCS



Ave .Power Consumption

130W/PCS

60W/PCS

60W/PCS



Refresh rate

1960Hz

Gamma

-5.0~+5.0

Applied environment

INDOOR



Controller

Synchronous display with control PC by DVI

Support Input

Composite ,S-Vide ,Component ,VGA,DVI,HDMI,HD_SDI

Power input

AC 110-220V±10%

Environment

temperature -10°C~+50°C,humidity 10~90% RH

Operating Life

50,000hours



[







[FAQ]



Q1: What's the pixel pitch for Indoor LED Display Screen ?

A1: Indoor (3.9mm / 4.8 mm/ 5.2mm)



Q2: Where is it used for?

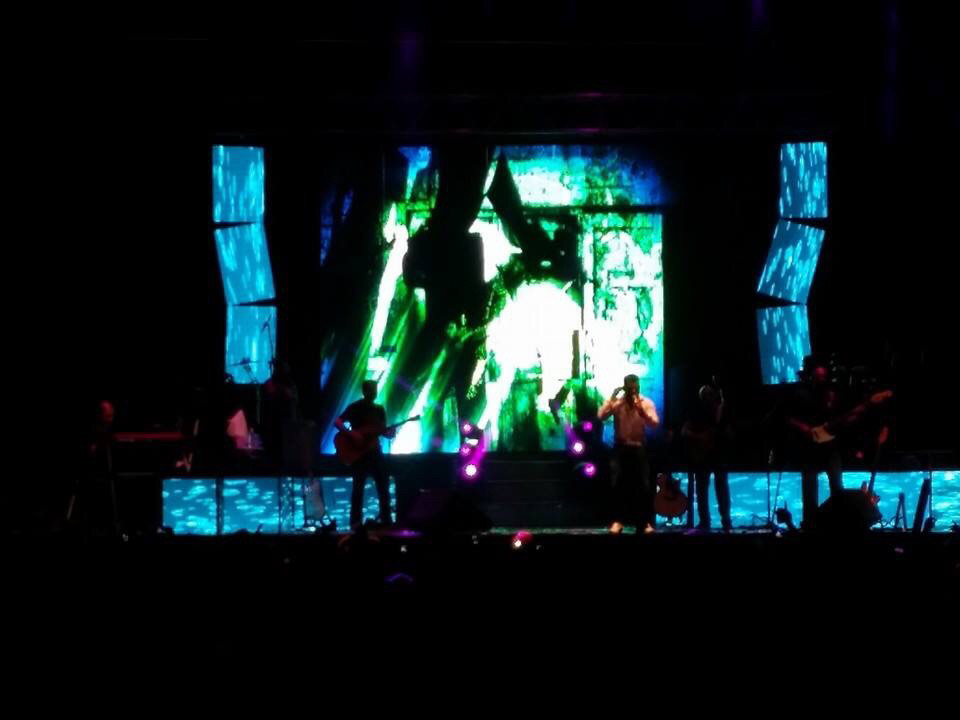

A2: Indoor & rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.

Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar controlling system.



Q4: What's the controlling system?

A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.



Q5: How about the size of project?

A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
